产品名称：SWI陶瓷体绕线系列

应用领域：移动电话（CDMA / GSM / PHS）、无绳电话（DECT/CT1CT2）、远程控制，安全系统、- 无线PDA 智能手机
-WLL无线LAN /鼠标/键盘/耳机、TV Tuners、收音機、 VCO，RF模块和其他无线产品等、 基站，中继台、-GPS接收器

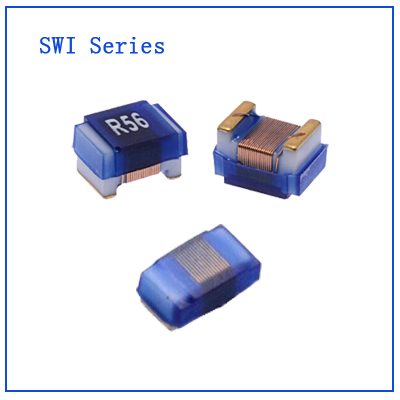

SWI Series

Wire wound ceramic chip inductor offers the overall combination of low cost,close tolerance and better QFactor and high self-resonant multilayer chip inductor.绕线陶瓷体晶片电感提供全面的组合，为具低价、误差小及好的品质系数的积层晶片电感。

Features

1.Ceramic core wire wound construction.

2.No batch to batch variations in inductance,SRF and Q that are present in ferrite inductors

3.High frequency application

4.Small footprint as well as low profile

5.The products contain no lead and also support lead-free soldering.

Lead Free Part Numbering

SWI 2012 - R47 M

A             B                   C          D

A: Series

B: Dimension    A×B

C: Inductance   R47=0.47uH

D: Inductance Tolerance

B=±0.2nH   S=±0.3nH  G=±2%   J=±5%  K=±10%
